Flange 12-Point Screws
IFI-115 is a standard developed through the procedures of Industrial Fasteners Institute. IFI-115 was first published in 1970 and modestly revised and reissued in 1986 and 2002.

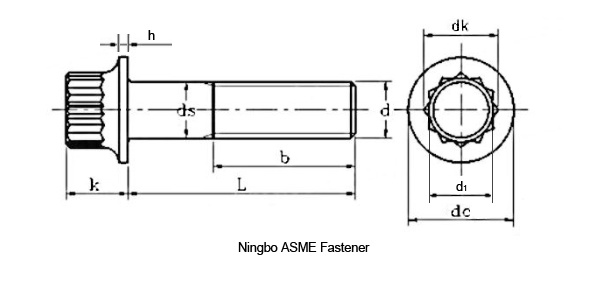

Flange 12-Point Screws Dimensions(inch)
|
d |
ds |
dc |
d1 |
dk |
k |
h |
b |
||
|
Min |
Max |
Min |
Max |
Min |
Min |
Max |
Min |
|
|
|
1/4 |
0.2435 |
0.375 |
0.365 |
0.252 |
0.244 |
0.278 |
0.260 |
0.058 |
1.000 |
|
5/16 |
0.3053 |
0.469 |
0.457 |
0.315 |
0.306 |
0.348 |
0.312 |
0.074 |
1.125 |
|
3/8 |
0.3678 |
0.562 |
0.550 |
0.377 |
0.368 |
0.420 |
0.375 |
0.095 |
1.250 |
|
7/16 |
0.4294 |
0.656 |
0.642 |
0.438 |
0.429 |
0.489 |
0.438 |
0.109 |
1.375 |
|
1/2 |
0.4919 |
0.750 |
0.735 |
0.502 |
0.493 |
0.562 |
0.500 |
0.129 |
1.500 |
|
9/16 |
0.5538 |
0.844 |
0.828 |
0.564 |
0.555 |
0.633 |
0.563 |
0.145 |
1.625 |
|
5/8 |
0.6163 |
0.938 |
0.921 |
0.627 |
0.618 |
0.705 |
0.625 |
0.166 |
1.750 |
|
3/4 |
0.7406 |
1.125 |
1.107 |
0.752 |
0.743 |
0.847 |
0.750 |
0.200 |
2.000 |
|
7/8 |
0.8647 |
1.312 |
1.293 |
0.877 |
0.866 |
0.987 |
0.875 |
0.234 |
2.250 |
|
1 |
0.9886 |
1.500 |
1.479 |
1.003 |
0.991 |
1.130 |
1.000 |
0.268 |
2.500 |
|
1-1/8 |
1.1086 |
1.688 |
1.665 |
1.128 |
0.115 |
1.271 |
1.125 |
0.310 |
2.750 |
|
1-1/4 |
1.2336 |
1.875 |
1.852 |
1.253 |
1.240 |
1.414 |
1.250 |
0.350 |
3.000 |
|
1-3/8 |
1.3568 |
2.062 |
2.038 |
1.378 |
1.365 |
1.556 |
1.375 |
0.392 |
3.250 |
|
1-1/2 |
1.4818 |
2.250 |
2.224 |
1.503 |
1.489 |
1.697 |
1.500 |
0.433 |
3.500 |
Threads
Flange 12-Point Screws threads, when rolled, shall be Unified coarse or fine thread series UNRC or UNRF, Class 2A or 3A in accordance with ASME B1.1. Threads produced by other means shall preferably be UNRC or UNRF, Class 2A or 3A, but at manufacturer's option may be Unified coarse or fine thread series UNC or UNF, Class 2A or 3A. Acceptability of screw threads shall be determined based on System 21, ASME B1.3M.
Material
Chemical and mechanical properties of steel screws normally conform to Grades 5 or 8 of SAE J429. Mechanical properties and chemistry to achieve properties in excess of Grades 5 or 8 shall be as agreed upon between you and our factory. Properties of several grades of nonferrous materials are covered in ASTM F468, and of several stainless steels in ASTM F593.
